Bronco V-Plow 160-E Electric

Kirjeldus

Bronco V-Plow 160-E

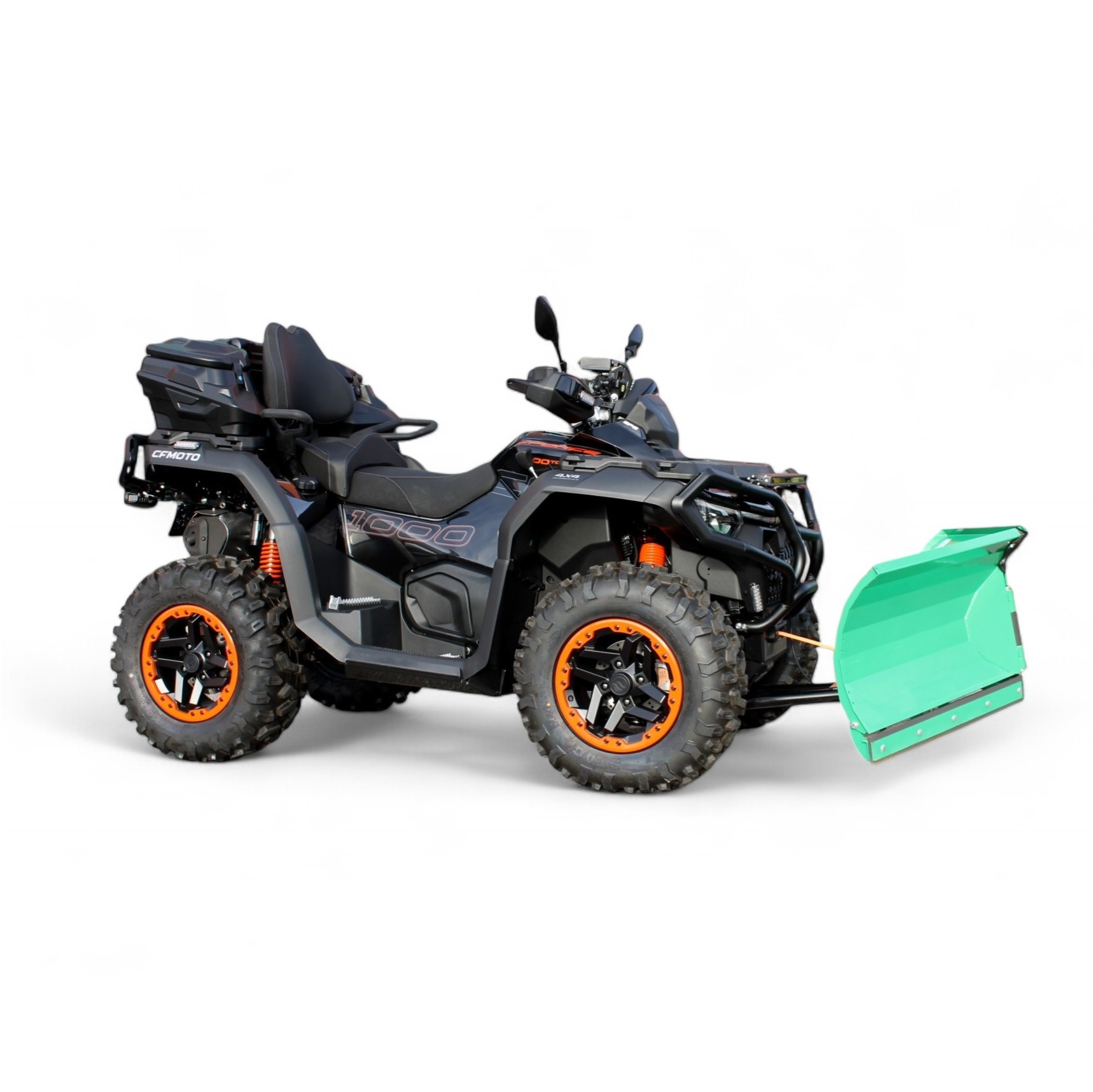

A professional Heavy Duty Made-in-Sweden snow plow for ATV/ UTV

Bump absorbing wear bars with torsion element. Rubber equipped wear bar as standard for a smooth and silent plowing on gravel, cobblestone, and other sensitive surfaces.

Adjustable skid shoes.

The blades are angled with the help of two powerful 12V, IP65 rated actuators from the mining industry. Each actuator moves approx. 225kg when in motion and holds its position under a 1,1 ton loading.

Dimensions V-plow:
Straight position: 160cm
Fully angled: 146cm
Width V-shape: 154cm
”Bucket” position: 150cm
Height: 52cm
Weight without adaptor: 70kg

Specifications actuator:
Max dynamic load: 2250 N
Max static load: 11350 N
Speed, unloaded: 30 mm/s
Speed, max load: 18 mm/s
Classification: IP 65
12 VDC, 28 A
Overload Clutch.

Paint code: RAL6024

For a complete V-plow kit you need V-plow, adaptor, pushframe and a machine specific mounting bracket. Product numbers below:

Bronco V-Plow 160-E: 75-804800
Adaptor (Bronco, Kimpex pushframe): 75-804801
Adaptor (Yamaha Lejab pushframe): 75-808300
Adaptor (Polaris OEM pushframe): 75-808500
Adaptor(Can-Am OEM pushframe): 75-804710
Compatible pushframe, Bronco: 75-804802 or 75-12471-0
Compatible pushframe, Kimpex: 75-373961 (ATV), 75-873000 (ATV), 75-374981 (UTV)

See our ATV catalog or website for product numbers on machine specific mounting brackets.
